NetApp Storage Encryption (NSE, NAE and NVE)

Configuring NetApp hardware-based encryption

NetApp hardware-based encryption supports full-disk encryption (FDE) of data as it is written. The data cannot be read without an encryption key stored on the firmware. The encryption key, in turn, is accessible only to an authenticated node.

Understanding NetApp hardware-based encryption

A node authenticates itself to a self-encrypting drive using an authentication key retrieved from an external key management server or Onboard Key Manager:

• The external key management server is a third-party system in your storage environment that serves keys to nodes using the Key Management Interoperability Protocol (KMIP). It is a best practice to configure external key management servers on a different storage system from your data.
• The Onboard Key Manager is a built-in tool that serves authentication keys to nodes from the same storage system as your data.

You can use NetApp Volume Encryption with hardware-based encryption to “double encrypt” data on self-encrypting drives.

NetApp Storage Encryption (NSE) provides full-disk encryption without compromising storage efficiency or performance

NetApp® Storage Encryption (NSE) is NetApp’s implementation of full-disk encryption (FDE) using self-encrypting drives from leading vendors.

NSE is a nondisruptive encryption implementation that provides comprehensive, cost-effective, hardware-based security that is simple to use. This single-source solution can increase overall compliance with industry and government regulations without compromising storage efficiency.

NSE:

• Supports the entire suite of storage efficiency technologies from NetApp, including deduplication, compression, and array-based AV scanning
• Supports the Gemalto SafeNet KeySecure encryption-key appliance, strengthening and simplifying long-term key management.
• Helps you comply with FISMA, HIPAA, PCI, Basel II, SB 1386, and E.U. Data Protection Directive 95/46/EC regulations using FIPS 140-2 validated hardware
• Complies with the OASIS KMIP standard, offering compatibility with other key managers and encryption devices

Configuring NetApp Volume Encryption

NetApp Volume Encryption (NVE) is a software-based technology for encrypting data at rest one volume at a time. An encryption key accessible only to the storage system ensures that volume data cannot be read if the underlying device is repurposed, returned, misplaced, or stolen.

Understanding NVE

Both data, including Snapshot copies, and metadata are encrypted. Access to the data is given by a unique XTS-AES-256 key, one per volume. An external key management server or Onboard Key Manager serves keys to nodes:

• The external key management server is a third-party system in your storage environment that serves keys to nodes using the Key Management Interoperability Protocol (KMIP). It is a best practice to configure external key management servers on a different storage system from your data.
• The Onboard Key Manager is a built-in tool that serves keys to nodes from the same storage system as your data.

Starting with ONTAP 9.7, aggregate and volume encryption is enabled by default if you have a volume encryption (VE) licence and use an onboard or external key manager. Whenever an external or onboard key manager is configured there is a change in how data at rest encryption is configured for brand new aggregates and brand new volumes. Brand new aggregates will have NetApp Aggregate Encryption (NAE) enabled by default. Brand new volumes that are not part of an NAE aggregate will have NetApp Volume Encryption (NVE) enabled by default.

NetApp Aggregate-level encryption (NAE)

Ordinarily, every encrypted volume is assigned a unique key. When the volume is deleted, the key is deleted with it.

Starting with ONTAP 9.6, you can use NetApp Aggregate Encryption (NAE) to assign keys to the containing aggregate for the volumes to be encrypted. When an encrypted volume is deleted, the keys for the aggregate are preserved. The keys are deleted only after the last encrypted volume in the aggregate is deleted.

You must use aggregate-level encryption if you plan to perform inline or background aggregate-level deduplication. Aggregate-level deduplication is otherwise not supported by NVE.

Starting with ONTAP 9.7, aggregate and volume encryption is enabled by default if you have a volume encryption (VE) licence and use an onboard or external key manager.

NVE and NAE volumes can coexist on the same aggregate. Volumes encrypted under aggregate-level encryption are NAE volumes by default. You can override the default when you encrypt the volume.

You can use the volume move command to convert an NVE volume to an NAE volume, and vice versa. You can replicate an NAE volume to an NVE volume.

Configuring onboard key management

You can use the Onboard Key Manager to authenticate cluster nodes to a FIPS drive or SED. The Onboard Key Manager is a built-in tool that serves authentication keys to nodes from the same storage system as your data. The Onboard Key Manager is FIPS-140-2 level 1 compliant.

First check the license package VE is installed or not.

Initially there is no key managers installed.

Create key manager either On-Board or External.

Provide the pass phrase and create a onboard key manager.

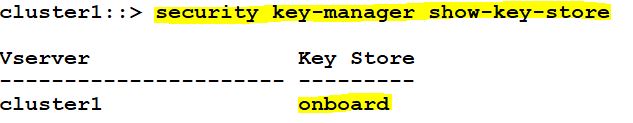

Check the key store and backup key information.

Both the nodes using the Onboard key manager for NetApp Storage Encryption.

Now create a volume with option -encrypt true.

Check the encryption status of that volume using the following command.

Create an aggregate with option encrypt-with-aggr-key true, to create NetApp Aggregate Encryption(NAE).

Check the NAE status.

You can disable the aggregate level encryption by using the following command.

Now move the volume to this non-encrypt aggregate with option encrypt-destination false.

The you can use it vice-versa for enabling the volume encryption with true option.

Now the volume is disabled for encryption.
